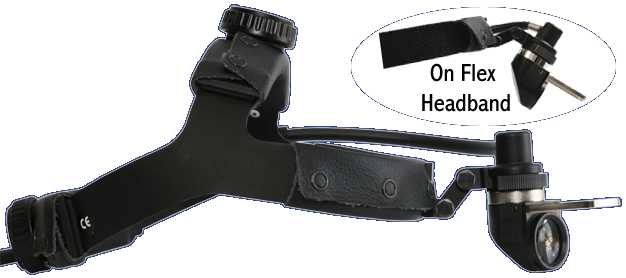

The Altair HI 2
HIGH INTENSITY FIBER OPTIC HEADLIGHT
Brilliant line of sight intensity, maximum control and the finest engineering and components brought together to provide the optimal surgical lighting experience: The Altair HI2 Fiber Optic Headlight from QED Medical

Comfortable, adjustable headband
Clean, consistent illumination field measures 11.5 cm at a 40 cm working distance
Specially coated, three-lens system delivers exceptional focus and intensity
Precision internal iris provides pinpoint spot adjustability
DuPont Minlon® is employed to provide a lightweight, durable,
heat resistant optics system
Our side-mount fiber optic bundle features flexible durability to bring
comfort, intensity and longevity to your system
Power by QED Medical Halogen or Xenon light sources for desired intensity
Available with 7’ or 10‘ lightweight, structurally sound, flexible fiber optic cables
QED Medical’s “Cable Lock” mechanism securely holds the cable into the optic
Autoclavable positioning bar provides sterile adjustability
Quick disconnect cable offers ease of movement
Collar and gown clips keep the fiber optic cable secure and contained

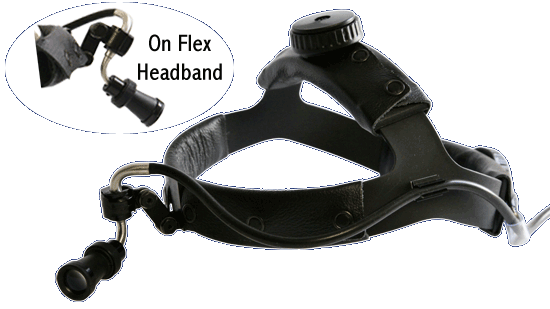

The Altair SA
LIGHTWEIGHT FIBER OPTIC HEADLIGHT
Small, light, brilliant: The Altair SA Fiber Optic Headlight delivers
exceptional intensity in a sleek unobtrusive system.

Comfortable, adjustable headband
Simple, lightweight clip-on systems for easy integration with popular magnification loupes
Precision iris adjustment provides a clean, even, variable spot size
Pivot points allow for exceptional coaxial alignment
Component design for low cost, simple maintenance
Power by QED Halogen or Xenon light sources for desired intensity
Available with 2m or 3m lightweight, structurally sound, flexible, fiber optic cables
Flexible enough for examination purposes; powerful enough for the O.R.
Quick disconnect cable offers ease of movement
Collar and gown clips keep the fiber optics cable secure and contained

Clips for The Altair SA

Flip up Loupe Clip		Standard Clip		Zeiss Clip

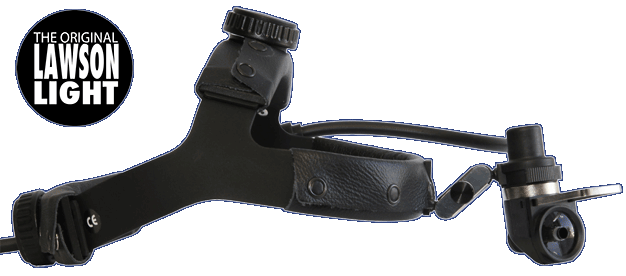

The Altair M
HIGH INTENSITY FIBER OPTIC HEADLIGHT
The need: deliver high quality intensity, shadow-free, into any body cavity. The answer: The Altair M from QED Medical. When asked by one of the leading Otolaryngologists to integrate the comfort, intensity and versatility of our systems with the specialized needs of this field, we responded.

QED’s original ball and swivel linkage allows the optic to be
positioned over the dominant eye
A tunnel drilled with precision through the optic provides an unimpeded,
shadowless, beautifully lit view into deep, restrictive areas of the body
Clean, consistent illumination field measures
11.5 cm at a 40 cm working distance
Specially coated, three-lens system delivers exceptional focus and intensity
DuPont Minlon® is employed to provide a lightweight, durable,
heat resistant optics system
Our side mount fiber optic bundle features flexible durability to bring comfort,
intensity and longevity to your system
Power by QED Medical Halogen or Xenon light sources for desired intensity
Available with 7’ or 10’ lightweight, structurally sound, flexible fiber optic cables
Autoclavable positioning bar provides sterile adjustability
Quick disconnect cable offers ease of movement
Collar and gown clips keep the fiber optic cable secure and contained
